Details
The Level.2 comes out of the box as a Class II ebike, with pedal assist and throttle going up to 20 MPH . It can be unlocked to a Class III ebike and can go up to 28 MPH on pedal assist. The Level.2 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited.
Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.
*Using PAS 1 throughout flat terrain with a rider weight of 160 lb.

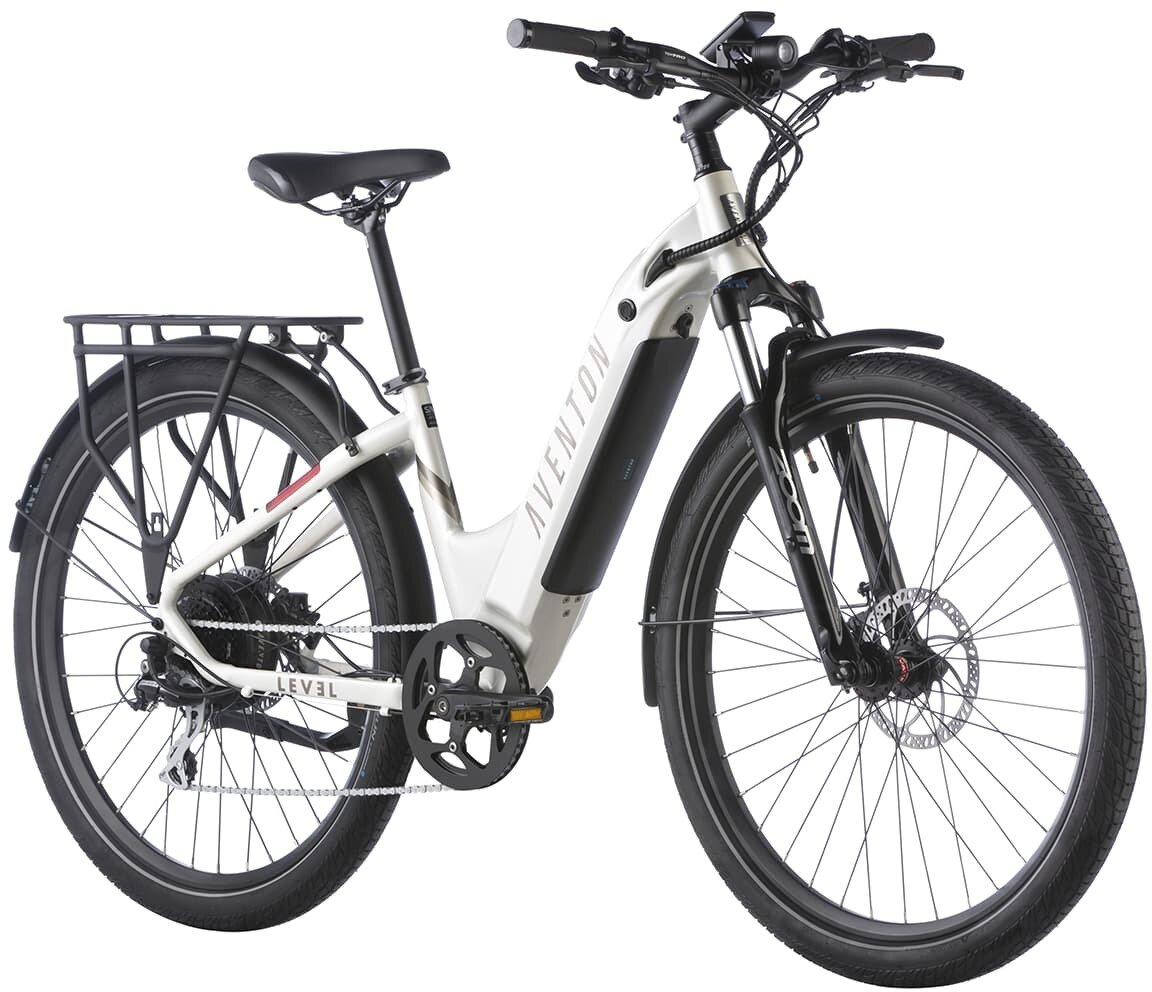

The Level2 Step Through is designed for riders who rate comfort and ease-of-use as highly as they do functionality. The extended battery range of 60 miles with speeds of 28mph (using pedal assist) will give you a longer ride at a very fast pace. Ride-tempering front suspension mean that wherever you go, you'll be riding in comfort on 27.5-inch wheels.
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | 6061 Double-Butted Aluminum Alloy with Internal Battery |
---|---|
Fork | Coil Spring Suspension, Thru-axle, 65mm travel with lockout |
Rims | Double Wall Aluminum 36h Front & Rear |
Hubs | 36H Disc Nutted Front and Rear |
Spokes | Black Stainless 13G Front / 12G Rear |
Tires | 27.5” x 2.1” Hybrid Tires, Reflective Sidewalls |
Crankset | 170mm w/ 48 T |
Shifters | 8 Speed |
Rear Derailleur | 8 Speed |
Cassette/Freewheel | 12-32T, 8 Speed Cassette |
Chain | 122 Link, 8 Speed |
Brakes | Hydraulic Disc Brakes, 180mm Rotors |
Rotors | 180mm rotors |
Handlebars | Aluminum 31.8mm,620mm |
Tape/Grips | Ergonomic Comfort |
Stem | Threadless, 31.8mm, 7 Degree Rise |
Headset | Sealed Bearing Headset |
Seatpost | Aluminum Alloy, 27.2mm, 2-Bolt Clamp |
Saddle | Aventon by Velok |
Pedals | 9/16' Alloy Platform |
Accessories & Extras | 60 Miles Average and Maximum Payload Capacity: 300 lbs, Fenders and Rear Racik |
Motor | 750W (Peak) 500W (Sustained) Brushless Rear Hub Motor |
Battery | Removable Internal Lithium-ion 48V, 14Ah (672Wh) |
Controller/Display | LCD Smart Easy Read Display with Backlight, Colorful screen with app |
Charger | 48V 3 Amp Fast Charger, 4-5 Hour Charging |
Electric-Assist Type | Electric Pedal Assist mode with 5 power level settings |
Drive System | Rear Hub Motor |
Throttle | Throttle on Demand - Throttle from a complete stop |
* Subject to change without notice.
