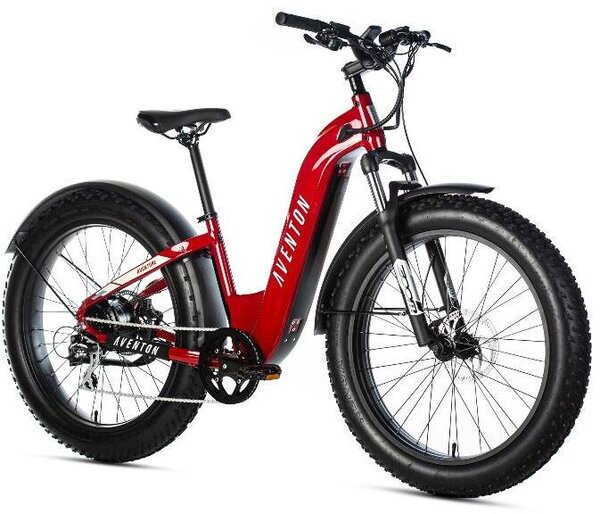

Aventon Adventure Step Through

Aventon Adventure Step Through
  • Color: Electric Red
  • Color: Camouflage Green
  • Color: SoCal Sand
Please select options


The Adventure Step Through comes out of the box as a Class II ebike, with pedal assist and throttle going up to 20 MPH . It can be unlocked to a Class III ebike and can go up to 28 MPH on pedal assist. The Level.2 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited.

Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.

*Using PAS 1 throughout flat terrain with a rider weight of 160 lb.

The Adventure Step Through is designed for riders who rate comfort and ease-of-use as highly as they do functionality. Ride-tempering front suspension mean that wherever you go, you'll be riding in comfort on 26 x 4" Ebike Rated Tires to be able to travel on all types of terrain.


Frame 6061 Double-Butted Aluminum Alloy with Internal Battery
Fork Suspension Fork with 80mm travel, with lockout
Rims Double Wall Aluminum 36h Front & Rear
Hubs 36H Disc Thru-axle Front, Nutted Rear
Spokes Black Stainless 12 Gauge
Tires 26 x 4" Ebike Rated Tires
Crankset 170mm w/ 46 T
Shifters 8 Speed
Rear Derailleur 8 Speed
Cassette/Freewheel 12-32T, 8 Speed Cassette
Chain 8 Speed
Brakes Hydraulic Disc Brakes, 180mm Rotors
Rotors 180mm rotors
Handlebars Aluminum 31.8mm,680mm
Tape/Grips Ergonomic Comfort
Stem Threadless, 31.8mm, 7 Degree Rise
Headset Sealed Bearing Headset
Seatpost Forged Alloy, 30.4mm x 350mm, 2-Bolt Clamp
Saddle Aventon by Velok
Pedals 9/16' Alloy Platform
Accessories & Extras 45 Miles Average and Maximum Payload Capacity: 300 lbs, Fenders
Motor 1130W (Peak) 750W (Sustained), 48V Brushless Rear Hub Motor
Battery Removable Internal Lithium-ion 48V, 15Ah (720Wh)
Controller/Display BC280 LCD Smart Easy Read Display with Backlight, Colorful screen with app
Charger 48V 3 Amp Fast Charger, 4-5 Hour Charging
Electric-Assist Type Electric Pedal Assist mode with 5 power level settings
Drive System Rear Hub Motor
Throttle Throttle on Demand - Throttle from a complete stop

* Subject to change without notice.

Part Numbers

Option Store SKU
Electric Red / Small/Medium
Electric Red / Medium/Large 94920
Camouflage Green / Small/Medium
Camouflage Green / Medium/Large
SoCal Sand / Small/Medium
SoCal Sand / Medium/Large
